BFAUDIO D-800
Update Time: 2022-08-18
Describe
From the overall design to the smallest detail, the craftsmanship of the D-Series reflects a commitment to quality and performance. Its expressiveness of sound quality inherits our usual style, and the stability tends to be perfect. The short circuit protection function of the D series can ensure that the engineer can protect the machine itself and the loudspeaker in the case of misoperation or other accidents. A nonlinear comparator is specially set up in the D series amplifier, and once the signal is found to be clipped, the working state of the power amplifier circuit can be adjusted immediately until the clipping is eliminated. The D-Series amplifiers have excellent signal conversion characteristics. It has very small harmonic distortion (THD), intermodulation distortion (SMPTE-IM), transient intermodulation distortion. Innocent, natural sound quality is the ultimate interpretation of music. Protects the speaker from noise caused by strong impulse currents.

Key features:

■ Power supply of high-quality power frequency toroidal transformer;

■ Imported capacitor components;

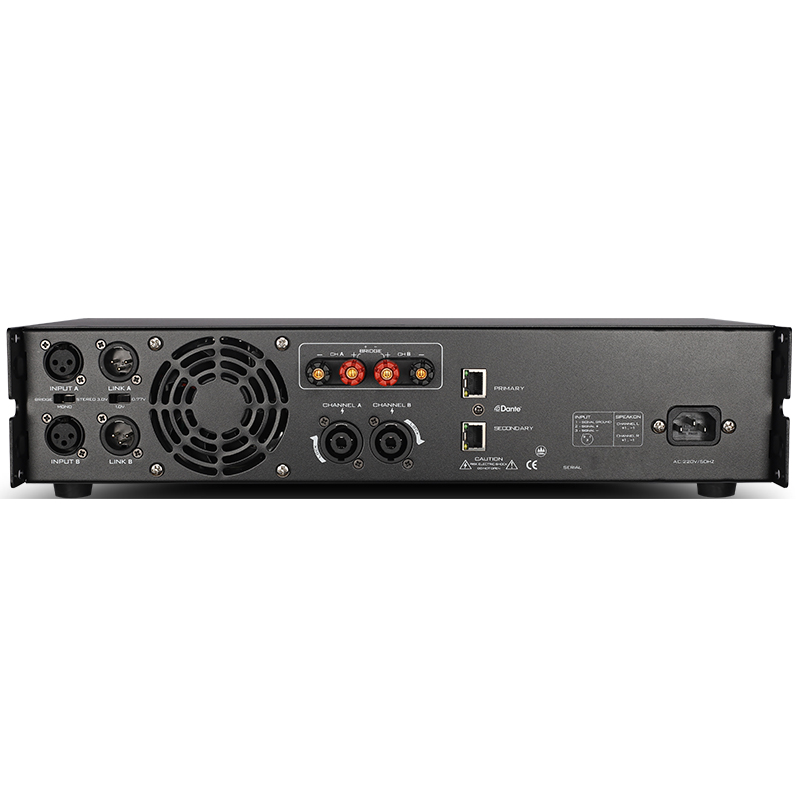

■ SpeakON NL4 output socket;

■ Input sensitivity selection on the rear panel (0.775V/1.0V/3V);

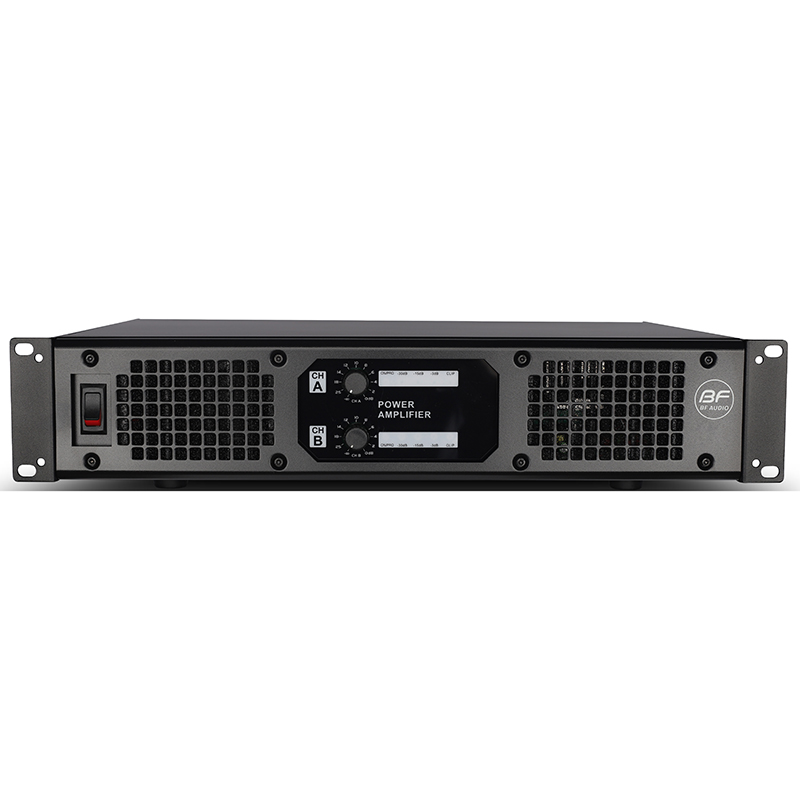

■ The front panel has independent channels, peak shaving warning, signal indicator and power indicator.

■ KTV private room stereo application.

■ Language reinforcement, small performances, speeches and other occasions.

Product Parameters:

Stereo (8Ω): 800W *2CH

Stereo (4Ω): 1200W *2CH

Stereo (2Ω): 1800W *2CH

Frequency response: 20Hz-20KHz, +0/-0.5dB

Total Harmonic Distortion: ≤0.01%

Signal-to-noise ratio: ≥101dB

Input sensitivity: 0.775/1.0V/3V

Input impedance (balanced/unbalanced): 20kΩ/10kΩ

Product dimensions (mm): W485×L365×H90

Net weight: 14.5kg
