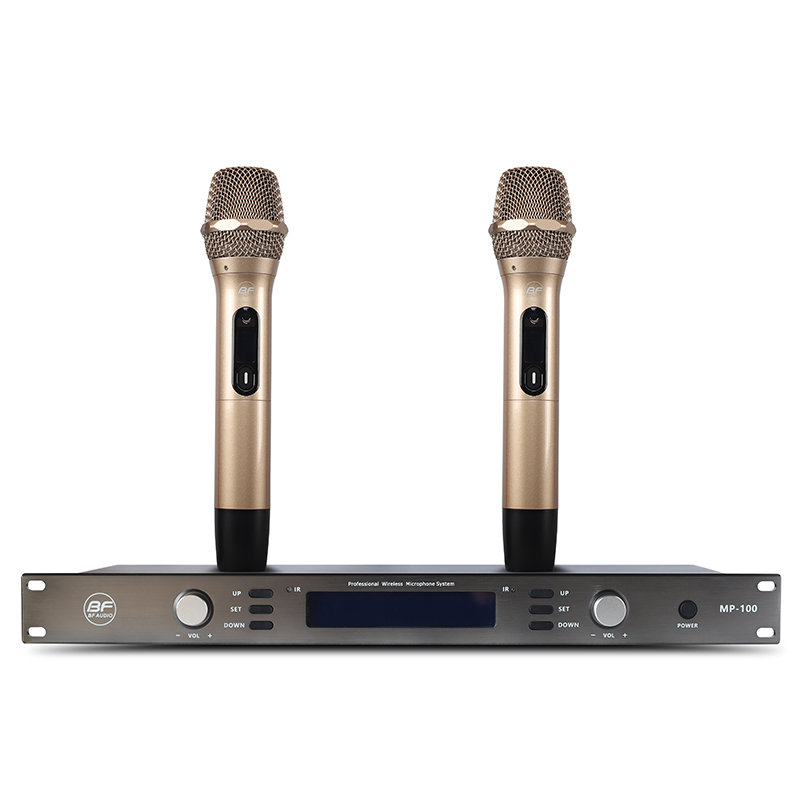

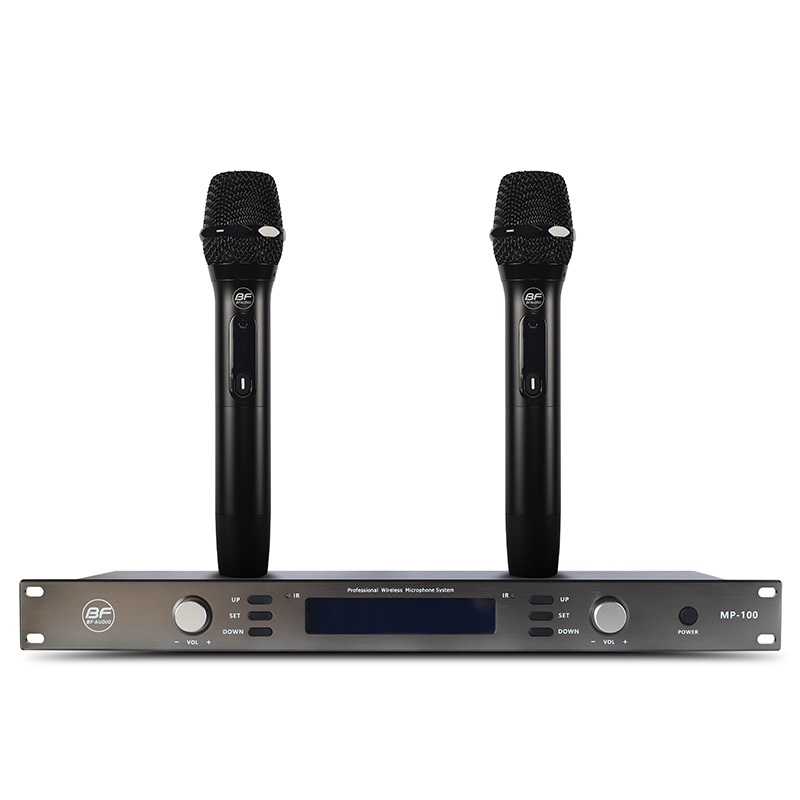

BFAUDIO MP-100
Update Time: 2022-08-18
Describe
MP100 has professional design, circuit composition and stable functional characteristics, audio works in the UHF frequency band, high-fidelity circuit design, new tuning circuit, new with microphone core, better sound quality, can produce high-quality sound effects. The system has an anti-RF interference structure design, and the ID identification code is anti-channeling, which can effectively isolate the impact of interference. The large screen displays the menu content, which is user-friendly and concise. Infrared automatic binding, SCAN automatic search, more convenient and accurate to find the clean frequency. The receiver has 200 channels to choose from, and the microphone is common to the left and right channels of the receiver. The display is designed to consume power and save energy, and the battery life is longer. One-key lock to prevent misoperation, and the number of boots is set for easy management. AI intelligent voice broadcast, warning and recording of the number of falls. It is fully suitable for large KTV and other places that need to be used at the same time.

Key features:

■ Operating frequency: UHF640-690MHz

■ Channel interval: 250KHz

■ Number of channels: 200CH

■ Frequency Stability: ±0.005%

■ Capsule matching: dynamic / condenser

■ Frequency response range: 30Hz-18KHz (±3dB)

■ Transmit power: 10~30mW

■ Microphone pairing: handheld

■ Power supply: No. 5 battery

Receiver parameters:

Operating frequency: UHF640-690MHz

Modulation: FM

Display content: RF/AF/channel/frequency/battery/mute/lock/etc

Maximum offset: ±35KHz

S/N ratio: >105dB

Synthetic Distortion: ≤0.5%

Working environment temperature: -10°C~+50°C.

Dynamic range: 100dB

Sensitivity: 12dBuV (70dB S/N)

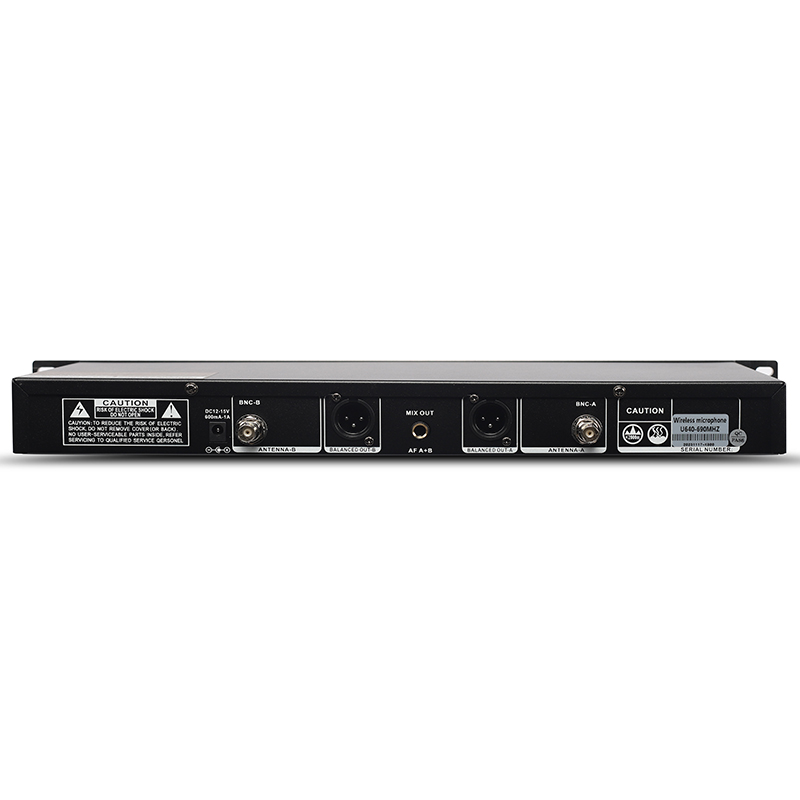

Audio output interface: 6.35/XLR

Antenna access interface: BNC/50Ω

Receiving distance: the visual distance is about 70 meters

Antenna collocation: long/short antenna optional (additional antenna distance is not included)

Power input: DC12C~15V--1A~2A
