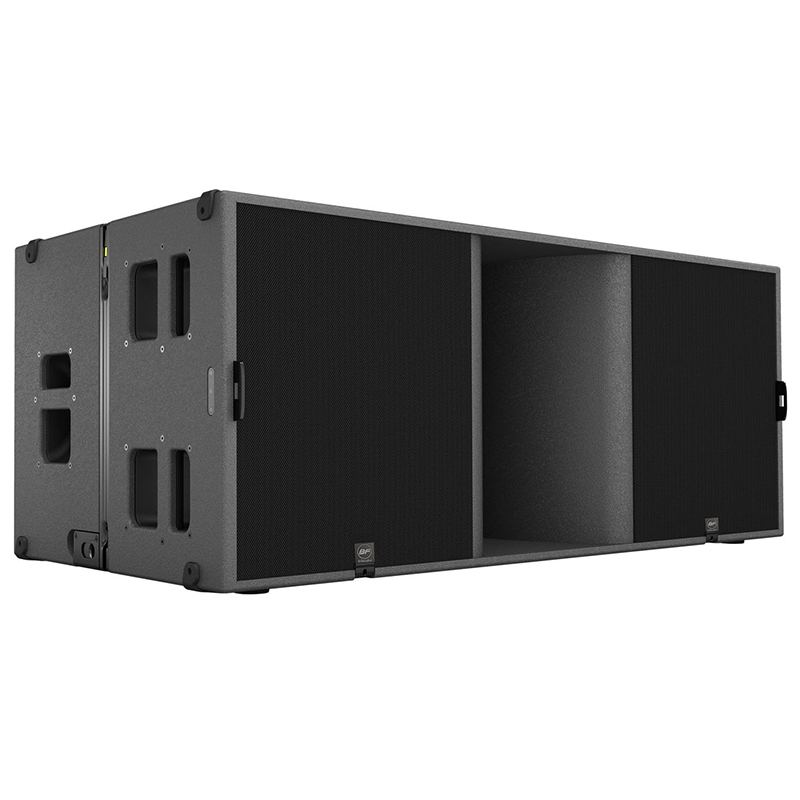

BFAUDIO L-218S
Update Time: 2022-08-18
Describe
Twin 18 passive subwoofers

Key features:

■ The L-218S is a subwoofer designed to extend the frequency response of large systems. The L-218S uses two high-amplitude offset, direct-radiating 18-inch transducers mounted in a low-frequency reflective tuned cabinet. The L-218S greatly reduces turbulence and outlet noise at high outputs, while also improving low-frequency efficiency.

■ The lower limit of the low frequency of the L-218S reaches 30Hz. The L-218 can be physically placed and preset to obtain standard or cardioid polar characteristics.

■ The L-218S cabinet is made of birch, and the thickness-optimized panels are combined with reinforcements to give the L-218S maximum internal capacity and complete structure. It features 6 ergonomic handles for easy handling and handling, bottom feet and side corner pads for safe stacking, and a two-point rigging system integrated into the cabinet.

Product Parameters:

System type: Dual 18-inch subwoofers

Frequency range: 30Hz-500Hz

Frequency Response: 35Hz-450Hz (+3dB)

Sensitivity: 105db

Input impedance: 4 ohms

Maximum SPL: 145dB SPL

Rated power: 2400W

Input interface: 2xNeutrik@ NL4MP

Box size (W×H×D): 1351mm×565mm×719mm

Gross weight: 86.4kg
