Key features：

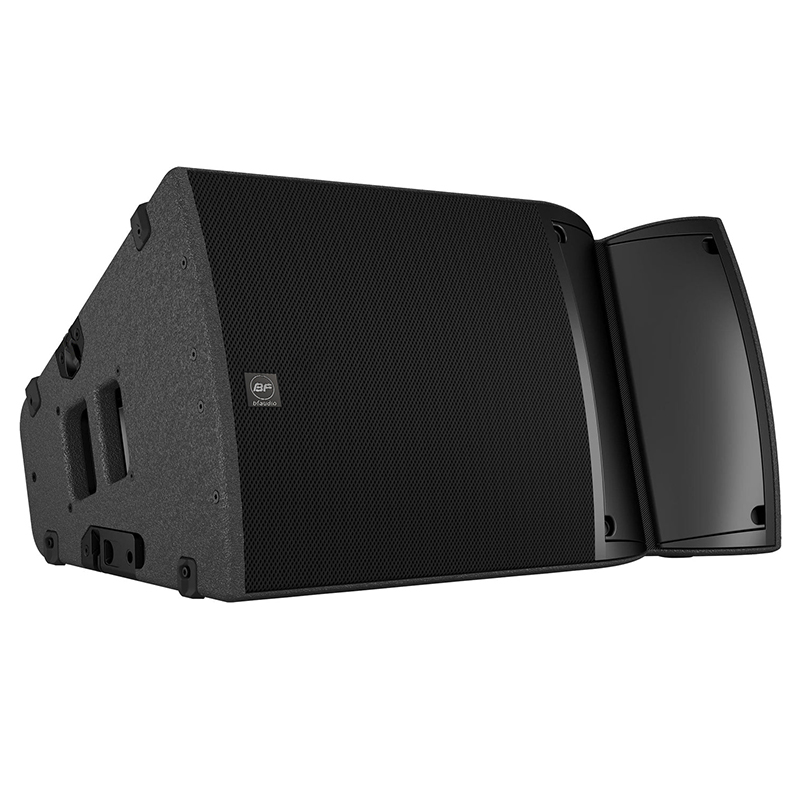

■ L-15W is designed for mid-range projection applications, with a built-in crossover 15-inch speaker with extremely flexible layout and ease of use.

■ The L-15W has a vertical dispersion angle of 30°, which provides wide coverage for a compact line array without compromising the line of sight. Allows the user to adjust the directivity to cover a specific geometry of the audience area and ensure excellent stability of the frequency response.

■ L15W and L15F can be hung together or stacked to form a vertical line array. The single L15W provides wide horizontal coverage when installed radially, which is particularly suitable for use as infills and side-fills on large stages. The single L15W can also be used as a point source pole mount with adjustable directivity or for applications such as time-lapse fills.

■ The L15W provides a large concert-level low-frequency response, while the L-218 subwoofer further enhances the low-frequency response and extends the lower frequency response to 30Hz.

Product Parameters：

Frequency response range: 45Hz-20KHz

Nominal impedance: 8Ω

Unit Composition:

LF: 1 × 15'' neodymium conical driver

HF: 1 × 3'' diaphragm neodymium compression driver

Projection angle: 30°×70/90°/110°, can be adjusted at will

Maximum sound pressure: 140dB

Box material: birch multi-layer plywood

Spray color: brown polyurea paint

Protective surface: black perforated steel + sound-permeable cloth

Input/output: Four-core speaker plug

Dimensions: 430mm× 750mm× 495mm

Gross weight: 35.3kg
